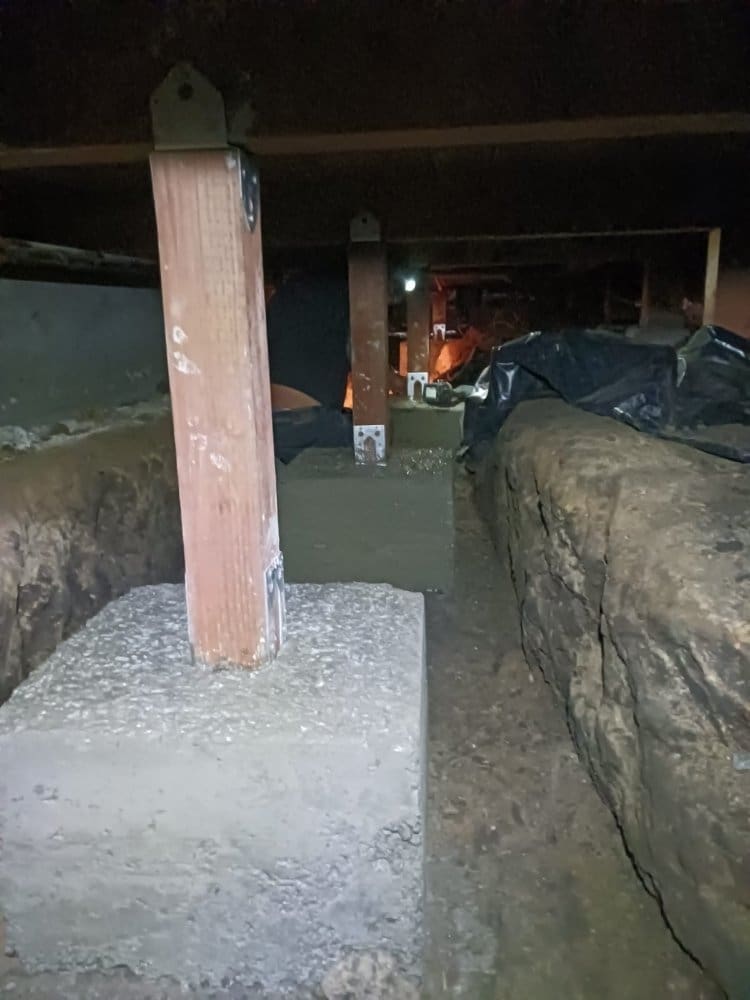

Wooden posts set in concrete foundations in a dark crawl space.

Identifying Structural Danger Signals in Foundation Wall Cracks

Evaluating foundation wall cracks requires distinguishing harmless superficial curing reactions from active structural movement driven by soil dynamics. Homeowners and building managers must take immediate action when cracks exceed 0.25 inches in width, exhibit horizontal displacement, display stair-step shearing across masonry mortar joints, or coincide with sticking exterior doors and bowed interior wall planes.

In field engineering operations, property owners frequently struggle to differentiate aesthetic surface flaws from high-risk structural movement. Concrete naturally develops minor hairline fractures during its hydration and dehydration drying cycles. However, active structural wall distress presents distinct physical symptoms that demand prompt professional engineering assessment.

During a structural inspection of a residential dwelling constructed over highly expansive clay, field engineers identified a poured basement wall exhibiting a 1.75-inch inward horizontal shear failure. The home owner initially assumed the fracture was a simple aging defect until ground-floor doors began binding tightly within their doorframes. The structure was permanently stabilized by pairing carbon fiber reinforcing straps with perimeter deep-drilled helical anchors to counteract external earth deflections.

Structural Crack Classification and Triage Framework

Physical crack geometry provides direct physical evidence regarding the specific mechanical forces acting upon a residential load-bearing foundation wall. Vertical hairline fissures generally reflect initial concrete curing shrinkage, whereas horizontal fractures and stair-step mortar breaks signal severe lateral hydrostatic soil pressure or differential settlement beneath load-bearing footings.

To assist property managers and building inspectors in triaging maintenance urgency, foundation cracks are classified by physical geometry, spatial orientation, and structural impact. Recognizing these physical indicators allows for rapid risk stratification prior to executing comprehensive structural engineering assessments. Each crack category is evaluated against strict severity thresholds:

  • Hairline Vertical Cracks: Typically measure under 0.0625 inches in width and stem from initial concrete curing shrinkage. They present minimal structural risk and require standard moisture-sealing protocols.
  • Structural Diagonal Cracks: Span diagonally across poured concrete walls, measuring between 0.125 and 0.25 inches. They signal active differential settlement across opposing footing zones and require regular engineering tracking.
  • Stair-Step Masonry Cracks: Follow mortar lines in cinder block or brick masonry, indicating uneven soil movement beneath isolated footing sections. These signal high risk and active foundation displacement.
  • Horizontal Wall Fractures: Span horizontally along the middle third of concrete or block walls, indicating extreme lateral hydrostatic soil pressure. These represent high-urgency structural threats that can cause total wall failure.
  • Wide Gaping Cracks: Measure over 0.25 inches in width and frequently show lateral offset or visible exterior light. These demand immediate structural shoring and mechanical wall anchoring.

Diagnostic Decision Framework for Foundation Cracks

A systematic diagnostic framework evaluates crack characteristics, quantifies systemic risks, and specifies targeted remediation protocols. By correlating crack width, orientation, and moisture conditions against local soil composition, engineers provide verified recommendations that prevent progressive structural failure while eliminating unnecessary capital expenditure.

Selecting the appropriate engineering fix depends on accurately identifying the root physical mechanism. The following decision matrix summarizes field repair strategies across diverse soil conditions:

Crack Characteristics Root Cause Mechanism Structural Risk Level Primary Engineering Fix Key Trade-Off Analysis
Non-structural vertical hairline under 0.0625 inches Concrete curing shrinkage and thermal contraction Low structural risk Polyurethane or epoxy injection sealing Minimal investment in US Dollars; seals against radon and moisture infiltration but adds zero structural support
Horizontal crack midway up wall with under 2 inches deflection Lateral hydrostatic soil pressure and expansive clay expansion Severe structural risk Carbon fiber reinforcement grid straps Moderate cost in US Dollars; fast installation without excavation, but cannot push bowed wall fully plumb
Horizontal crack with inward wall bow exceeding 2 inches Severe earth pressure and loss of shear wall strength Extreme structural risk Steel I-beam power braces or helical wall anchors High investment in US Dollars; anchors can pull walls back over time but require outside yard excavation
Stair-step masonry cracks with corner settlement Differential footing settlement from unstable bearing soils High structural risk Helical piers or push piers driven to bedrock Significant project cost in US Dollars; permanently halts sinking but requires heavy equipment site access
Diagonal cracking around window or basement corners Torsional stress from differential soil heave Moderate to high structural risk Resistance piers paired with drainage correction Moderate to high expenditure in US Dollars; cures structural foundation movement but requires grading overhaul

Structural Soil Dynamics and Environmental Pressures

Unstable soil dynamics drive over 80 percent of load-bearing foundation failures in regions dominated by reactive clay formations. Environmental moisture fluctuations cause soil swelling during wet cycles and severe shrinkage during droughts, exerting intense lateral hydrostatic pressure against foundation walls that can exceed initial structural load design limits.

Expansive soil types rich in montmorillonite clay swell significantly when exposed to heavy precipitation or unmanaged surface runoff, generating thousands of pounds of lateral force against basement structures. Standard guidelines published by the American Society of Civil Engineers (ASCE) note that clay soils exhibiting a Plasticity Index above 35 create cyclical volumetric expansion capable of displacing concrete basement walls.

During dry summer periods, expansive clay desiccation causes subgrade soil shrinkage, withdrawing support from beneath load-bearing footings. This continuous wet-dry cycling creates differential settlement patterns, forcing concrete walls to bridge ungrounded voids. In colder climates, hydrostatic pressure combines with soil frost heave to accelerate shear cracking along subterranean masonry structures.

In a commercial site case study, improper roof downspout discharge concentrated thousands of gallons of water along a north-facing wall footing. The surrounding heavy clay soil expanded rapidly, producing a continuous horizontal crack that sheared three reinforcement bars within the poured wall. Engineers alleviated the structural load by excavating the building exterior, installing high-capacity perimeter drainage, and reinforcing the concrete wall with structural steel braces.

Remediation Protocols and Engineering Trade-Offs

Structural repair protocols must be tailored to specific failure mechanisms, structural design parameters, and environmental load factors. Selecting between carbon fiber reinforcement, steel bracing, epoxy injection, and helical underpinning requires balancing long-term load capacity against installation invasiveness, total overall investment in US Dollars, and structural stabilization requirements.

Remediating structural foundation cracks requires a systematic approach to neutralize active soil pressures while restoring structural capacity. Repairs should adhere to structural design recommendations from the American Concrete Institute (ACI) to ensure crack mitigation restores long-term wall integrity. Property owners should execute remediation through a structured sequence:

  1. Conduct a detailed structural survey and floor level mapping to measure total differential movement and wall deflection.
  2. Implement perimeter water management and grade corrections to eliminate localized soil saturation and lateral hydrostatic forces.
  3. Install structural wall stabilization elements, such as carbon fiber grid straps or heavy steel beams, to lock bowing walls in place.
  4. Drive helical underpinning piers into load-bearing strata beneath sinking footings if differential settlement is present.
  5. Inject non-shrinking structural epoxy or polyurethane polymers into remaining wall cracks to seal against moisture infiltration and radon gas.

Frequently Asked Questions

How do we determine if a foundation crack requires immediate structural stabilization?

A foundation crack represents an immediate emergency if it measures wider than 0.25 inches, runs horizontally across the wall, or demonstrates active inward displacement. Additional critical warning indicators include inward wall bowing exceeding 1 inch, visible exterior daylight through the wall, water infiltration during storm events, or severe floor sloping on the living levels above.

When evaluating urgency, engineers inspect whether the wall has lost structural shear resistance along its midpoint. Horizontal cracks accompanied by inward wall deflection indicate that lateral earth pressure has exceeded the bending yield capacity of the concrete or masonry unit. Immediate temporary shoring and professional structural intervention are necessary in these scenarios to prevent structural collapse.

What is the distinction between cosmetic shrinkage cracks and structural settlement cracks?

Cosmetic shrinkage cracks are identified by their uniform vertical orientation, narrow width under 0.0625 inches, and stable behavior after concrete curing completes. In contrast, structural settlement cracks exhibit irregular diagonal or stair-step paths, widths exceeding 0.125 inches, progressive widening over time, and offset surfaces caused by differential foundation movement.

Cosmetic cracks originate from volume reduction as excess mixing water evaporates during the concrete curing phase. They do not span across footings or cause structural displacement in the upper framing. Structural settlement cracks originate from uneven bearing capacity in subgrade soils, causing differential footing drop that alters the alignment of door frames, windows, and floor joists above.

Can exterior drainage improvements stop foundation wall cracking from progressing?

Exterior drainage enhancements effectively stop progressive foundation cracking when lateral hydrostatic pressure or expansive soil swelling drives wall movement. Diverting roof runoff via extended downspouts and grading soil away from the perimeter mitigates moisture volume changes in clay, though existing structural displacement still requires mechanical stabilization.

Water control is the most effective preventative measure against ongoing foundation movement in reactive clay soils. By installing subterranean French drains and directing surface runoff clear of the foundation perimeter, soil moisture levels stabilize and hydrostatic pressure heads drop. However, once a wall has suffered structural shear cracking or lost vertical plumb, mechanical wall reinforcement must accompany drainage remediation to restore structural capacity.

How do horizontal foundation cracks form and why are they particularly dangerous?

Horizontal foundation cracks form when excessive external soil pressure pushes inward against basement walls, creating severe bending shear stress along the middle third of the wall height. These cracks are dangerous because they indicate impending structural deflection, loss of load-bearing capacity, and potential wall collapse under unbalanced lateral forces.

Horizontal fractures signal that lateral earth pressure has exceeded the tensile strength of the concrete or mortar joints. As saturated soil expands against the foundation exterior, the center of the wall bows inward while the top and bottom remain anchored by joists and floor slabs. Unchecked horizontal cracking leads to severe wall deflection, compromise of upper floor framing support, and complete structural breakdown.

What are the trade-offs between carbon fiber wall straps and heavy steel I-beam bracing?

Carbon fiber straps offer a non-invasive, low-profile solution ideal for walls with inward deflection under two inches, preserving basement living space without floor excavation. Conversely, steel I-beams handle severe bowing exceeding two inches and provide mechanical drive-back capability, but require ceiling joist attachment and floor slab trenching.

Carbon fiber features high tensile strength and bonds directly to clean concrete with structural epoxy, adding virtually zero thickness to the interior basement wall profile. However, carbon fiber cannot push a deflected wall back to a plumb position; it only stabilizes current movement. Steel I-beams consume several inches of interior floor space but allow mechanical jacks and torque bolts to incrementally push bowed masonry back toward its original alignment over time.
