Commercial Foundation Underpinning in Aurora: Engineering Standards and Contractor Solutions

Commercial foundation underpinning in Aurora is the specialized engineering process of transferring a building load from failing surface soil down to stable, high-capacity strata or bedrock. Structural engineering teams execute these structural interventions to permanently stabilize commercial properties suffering from differential settlement, expansive bentonite clay movement, or added structural loads from industrial facility expansions.

Aurora features complex soil profiles characterized by highly active bentonite clays, fine silts, and variable seasonal water tables. When moisture penetrates these soil layers during seasonal storms or localized drainage failures, the clay swells dramatically. Conversely, dry summers cause severe soil shrinkage and desiccation, causing shallow commercial footings to sink and tip unevenly.

Structural engineering teams encounter these subterranean soil movements across retail complexes, tilt-up logistics centers, and multi-story office buildings throughout the Denver metro area. Unaddressed differential settlement destabilizes structural framing, fractures reinforced concrete floor slabs, and threatens facility safety. By transferring structural loads past unstable surface soils to dense sand, gravel, or hard bedrock, commercial underpinning permanently preserves structural integrity and restores original building elevations.

Primary Indicators and Objectives of Commercial Foundation Failure

Commercial foundation failure manifests through structural wall shearing, slab displacement, and operational door binding caused by shifting sub-grade clays. Structural underpinning objectives focus on redirecting multi-ton building loads past volatile soils, restoring lost structural elevation, and expanding load capacity to accommodate facility additions or heavy machinery without risking structural collapse.

Specific structural distress symptoms evaluated during initial commercial site assessments include:

• Diagonal shear cracking across exterior concrete masonry unit walls, pre-cast concrete panels, and brick facades.
• Vertical separation and slab settlement between interior non-load-bearing partitions and concrete floor slabs under heavy point loads.
• Operational framing distortion, including binding commercial overhead bay doors, misaligned emergency exit frames, and severed underground utility lines.
• Lateral foundation wall movement, bowing basement retainers, and severe basement wall rotation driven by excessive hydrostatic pressure.

Primary commercial underpinning objectives address these failure modes through targeted structural interventions:

• Load path redirection from compressible topsoil to stable deep bearing strata or competent bedrock.
• Precision hydraulic elevation recovery to restore settled framing, walls, and slabs back toward original architectural tolerances.
• Bearing capacity upgrades designed to support added building stories, overhead crane systems, or heavy industrial machinery.
• Shoring and lateral earth support during adjacent deep utility trenching or adjacent subterranean facility construction.

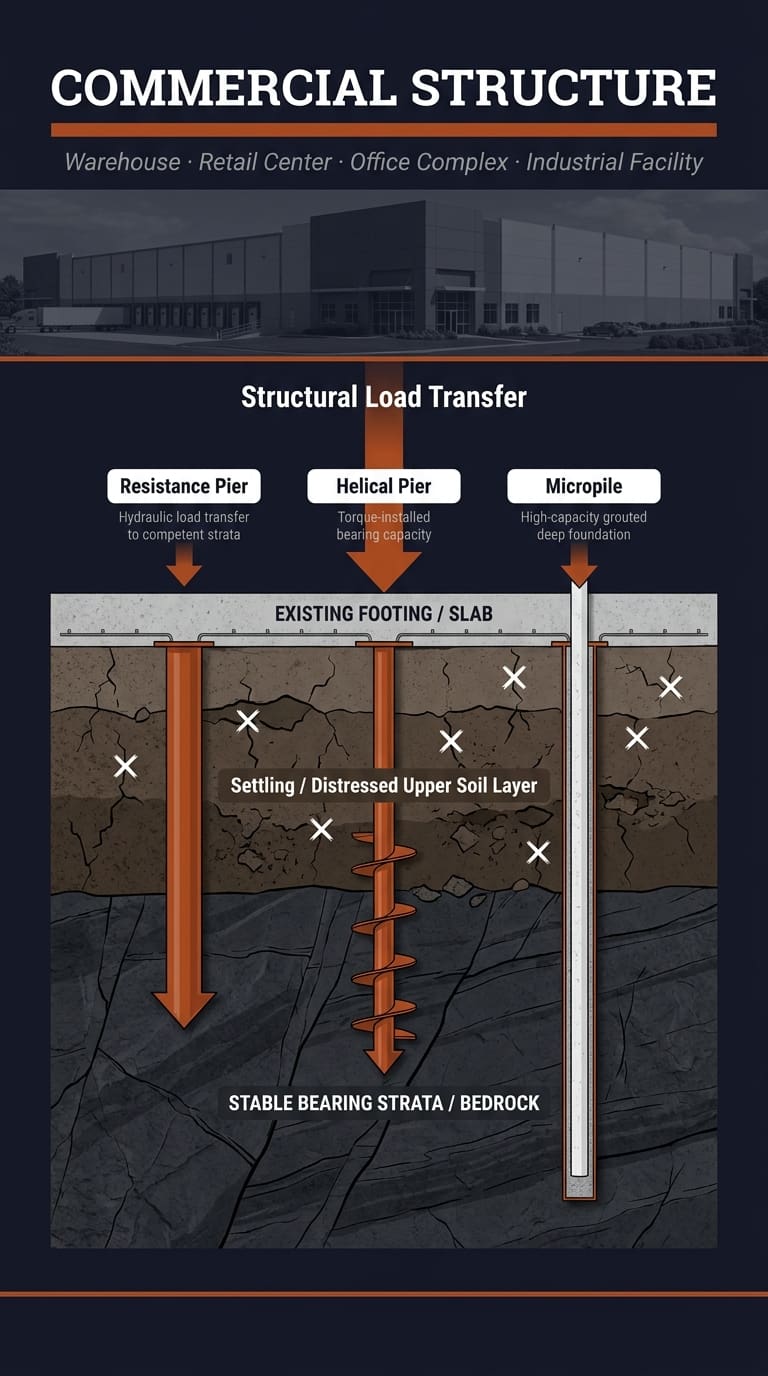

Core Commercial Underpinning Methods and System Selection

Selecting an appropriate commercial underpinning system depends on building weight, structural load requirements, subsurface soil profiles, and site access limitations. Structural engineering contractors utilize four core engineering systems in Aurora—resistance push piers, helical screw piles, drilled micropiles, and mass concrete pit underpinning—to deliver long-term foundation stabilization tailored to specific commercial building demands.

Resistance Push Piers

Resistance push piers utilize hydraulic rams and the structural weight of an existing commercial building to drive high-strength steel pipe sections deep into load-bearing strata. Structural engineers deploy push pier systems on heavy reinforced concrete structures, multi-story office facilities, and tilt-up industrial warehouses where high axial load transfers are required.

Each pier section is driven through a heavy-duty structural steel bracket bolted directly to the footing face. The system utilizes continuous pressure monitoring to verify ultimate load capacity at each pier location. Because push piers drive hydraulics without impact hammer action, installation produces minimal site vibration, protecting sensitive interior operational equipment.

Helical Screw Piles

Helical screw piles feature factory-welded helical bearing plates rotated into soil strata using hydraulic motor units until reaching specified torque values. Contractors install helical piers for light-to-medium commercial structures, parking garage retrofits, and building additions on loose sands or soft clays where building mass is insufficient for push piers.

Installation torque directly correlates to geotechnical ultimate bearing capacity, allowing real-world verification during rotation. Helical piers perform exceptionally well under both axial compression and tensile uplift conditions. This dual load handling makes them ideal for tall structures, signs, and retaining walls subjected to high lateral wind forces.

Drilled Micropiles

Drilled micropiles are high-capacity, small-diameter deep foundation elements constructed using high-strength steel casing, internal structural rebar, and pressure-injected cementitious grout. Engineers specify micropiles when operating inside low-headroom interior commercial spaces, severely constrained structural footprints, or difficult ground conditions containing dense cobble, boulders, or bedrock refusal layers.

Drilling rigs penetrate tough subterranean obstructions, driving casings deep into dense rock layers. Structural load transfer occurs via bond stress between the pressure-injected cementitious grout body and surrounding rock or soil matrices. Individual micropiles yield structural capacities ranging from 20 tons to over 200 tons.

Mass Concrete Pit Underpinning

Mass concrete pit underpinning involves excavating sequential, hand-dug subterranean pits directly beneath an existing shallow footing, placing reinforcement steel, and pouring high-strength concrete to deepen the foundation. Contractors apply pit underpinning for shallow foundation depth extensions, historical commercial property renovations, and commercial basement floor lowering projects.

Pit excavation is executed in a strict, alternating sequence to prevent foundation destabilization during soil removal. Concrete is placed to within two inches of the existing footing bottom, followed by non-shrink structural dry-pack mortar ramming to ensure complete load transfer. This traditional technique creates a continuous concrete mass that doubles as a structural retaining wall.

Technical Comparison of Commercial Underpinning Systems

Evaluating commercial underpinning technologies requires balancing geotechnical capacity, allowable headroom, soil profile characteristics, and operational disruption limits. Engineering teams evaluate these core criteria across every commercial underpinning system to select the most cost-effective and structurally sound solution for commercial property owners and industrial general contractors operating within Aurora.

Structural Engineering Standards, Soil Mechanics, and Code Compliance

Commercial underpinning projects in Aurora must strictly comply with structural building codes, local soil mechanics specifications, and geotechnical engineering protocols. Every commercial underpinning design is engineered in complete accordance with ICC International Building Code Chapter 18 standards, structural engineering guidelines from the American Society of Civil Engineers, and municipal permitting regulations enforced by the City of Aurora Building Division.

Geotechnical field testing forms the foundation of structural engineering calculations:

• Standard Penetration Testing (SPT) during soil borings measures relative soil density and resistance across 5-foot depth increments.
• Plasticity Index (PI) and Atterberg Limits laboratory testing measure expansion potential in local bentonite clays.
• Hydrogeological assessments locate seasonal perched water tables to design subsurface dewatering during underpinning execution.

Building code compliance requires thorough engineering review and structural design stamping:

• Structural load combinations follow IBC Chapter 18 guidelines for dead, live, wind, and seismic force interactions.
• Deep foundation design adheres to FHWA micropile and driven piling technical design standards.
• Continuous third-party special inspections verify steel yield strength, torque relationships, and concrete grout compressive strength.

Field Case Study: Resolving Complex Commercial Settlement in Aurora

Addressing complex commercial structural distress requires combining real-world field engineering with advanced geotechnical stabilization techniques to solve severe foundation movement. In one Aurora project, structural engineers resolved active differential settlement on a 30,000-square-foot commercial distribution warehouse constructed over active bentonite clay by engineering a custom hybrid underpinning solution.

The logistics facility experienced up to 3.5 inches of foundation settlement along its eastern load-bearing tilt-up panel perimeter. This structural movement caused interior floor slab cracking, misaligned overhead door tracks, and structural roof truss binding. Subsurface borings revealed a 14-foot active layer of high-plasticity clay sitting above a fractured claystone bedrock stratum.

To solve these severe constraints without shutting down distribution operations, engineers designed a combined resistance push pier and low-headroom micropile solution. Crews installed 32 heavy-duty steel push piers along the exterior perimeter footings, driving them to structural refusal at 28 feet. Simultaneously, inside low-headroom interior storage aisles, crews drilled 14 micropiles through the floor slab to support interior structural column pads.

Using a synchronized multi-port hydraulic manifold system, contractors lifted the settled perimeter walls 2.8 inches back toward original design elevation in a controlled single-day operation. Post-lifting pressure grouting filled subterranean voids beneath the interior slab, permanently eliminating slab deflection. The entire project concluded on schedule, restoring complete structural integrity while facility operations continued uninterrupted.

Sequential Commercial Underpinning Engineering Process

Executing commercial foundation underpinning requires a multi-stage structural process that ensures structural safety, load transfer precision, and long-term elevation stability. Contractors follow five strict engineering phases on commercial underpinning projects, progressing from initial geotechnical core borings to synchronized hydraulic lifting and post-lifting void pressure grouting:

1. Geotechnical Investigation and Structural Load Analysis: Registered structural engineers review building plans, analyze soil boring data, calculate combined dead and live column loads, and select the optimal underpinning pile system.
2. Excavation and Foundation Bracket Mounting: Crews excavate targeted pits down to the footing base, notch or dress concrete surfaces, and mount high-capacity structural steel foundation brackets securely using anchor bolts.
3. Pier Installation and Load Capacity Verification: Steel pier sections are hydraulically driven or mechanically rotated through brackets down to dense bearing strata, with installation pressure gauge or torque readouts verifying target bearing capacities.
4. Synchronized Hydraulic Lifting and Structural Stabilization: Connected hydraulic manifolds apply synchronized lifting forces across pier locations, restoring lost foundation elevation safely before locking collar assemblies permanently secure structural loads to piers.
5. Pressure Grouting and Site Surface Restoration: High-density structural polyurethane or cementitious grout fills subterranean voids created during lifting, after which excavations are backfilled with compacted fill material and surface concrete is restored.

Commercial Underpinning Cost Determinants and Financial Analysis

Budgeting commercial underpinning projects involves analyzing depth to bearing strata, site accessibility constraints, structural load intensity, and engineering design complexities. Project managers evaluate these financial parameters transparently to provide commercial building owners and facility managers with reliable, predictable cost forecasts without unexpected expenses during execution.

A typical commercial push pier or helical pier installation in Aurora ranges from 1,800 to 3,800 US Dollars per pier location, depending on depth and load requirements. Comprehensive commercial stabilization projects typically range between 35,000 and 180,000 US Dollars depending on facility size and structural damage. Investing in engineered underpinning prevents catastrophic building failure, protects asset valuation, and ensures long-term operational continuity.

Frequently Asked Questions

What is the primary difference between residential and commercial underpinning in Aurora?

Commercial underpinning requires significantly higher load capacities, larger steel piling diameters, and compliance with strict commercial building codes. While residential jobs focus on lighter single-family loads, commercial projects demand rigorous engineering plans under IBC Chapter 18, advanced hydraulic manifold systems, and comprehensive third-party special inspections.

How do expansive clay soils in Aurora impact commercial foundations?

Expansive bentonite clays absorb moisture and expand during wet seasons, then shrink significantly as they dry out. This repeated movement exerts powerful uplift and horizontal forces on shallow commercial footings, causing uneven settlement, slab cracks, and structural alignment issues. Commercial underpinning bypasses these reactive clay layers by anchoring structural loads deep into stable soil or bedrock.

Can a commercial facility remain operational during an underpinning installation?

Yes, most commercial facilities can remain fully operational throughout the underpinning process. Contractors perform perimeter pier installations entirely from the building exterior without disturbing internal operations. For interior pier requirements, specialized crews use compact electric drill rigs, dust containment enclosures, and night-shift scheduling to prevent disruption to business activities.

How deep must underpinning piers be driven in the Aurora area?

Underpinning piers in Aurora are driven to depths between 15 and 50 feet below ground level. The required depth depends on local soil profiles and the location of stable load-bearing soil or bedrock. Rather than relying on estimated depth alone, installation crews monitor hydraulic drive pressure gauges and motor torque readouts to confirm load capacity during installation.

What permits and engineering certifications are required for commercial underpinning?

Commercial underpinning requires stamped structural engineering drawings, geotechnical soil investigation reports, and a municipal building permit from the local building authority. Projects governed by the International Building Code also require continuous third-party special inspections during excavation, pier driving, and pressure testing before final building department approval.
