Building a home or evaluating a property starts with understanding what holds it up. The best foundation type for your project depends on soil conditions, climate, budget, and the structure’s load requirements. This guide breaks down every major foundation type, explains when each is the optimal choice, and highlights critical selection factors—so you can make an informed decision from the ground up.

---

Shallow Foundations: Cost-Effective Solutions for Stable Soils

Shallow foundations transfer the building’s load to the soil near the surface. They are typically wider than they are deep, making them faster and more economical to install when ground conditions are favorable.

1. Spread Footing (Isolated Footing)

A spread footing is a widened base—usually concrete—that sits beneath an individual column or pier. The wider base distributes the column’s concentrated load over a larger soil area, reducing pressure on the ground below.

• Commonly used in residential construction and light commercial buildings.

• Cost-effective and straightforward to build.

• Not suitable for weak or highly compressible soils.

• The footing width is engineered based on the column load and soil bearing capacity.

2. Strip Footing (Continuous Footing)

Strip footings run continuously beneath load-bearing walls. They spread the wall’s linear load along the entire length of the footing, providing uniform support.

• Ideal for buildings with masonry or concrete walls.

• Simple design makes them a common choice for low-rise structures.

• Limited to sites with uniform, stable soil conditions.

• The depth and width of the strip are determined by the wall load and soil properties.

3. Raft or Mat Foundation

A raft foundation is a single, thick concrete slab that covers the entire building footprint. It “floats” the structure on the soil, spreading heavy loads evenly and minimizing differential settlement.

• Used when soil bearing capacity is low or loads are very high.

• Particularly effective on expansive clay soils—a common challenge in the Denver metro area.

• Reduces the risk of uneven settling, which can crack walls and misalign doors.

• More expensive and complex to pour than spread or strip footings.

Table: Shallow Foundation Comparison

4. Slab-on-Grade Foundation

A slab-on-grade is a single layer of concrete poured directly on the ground. It acts as both the foundation and the ground floor, eliminating the need for a crawl space or basement.

• Most common foundation type in warmer climates and for many single-story homes.

• Cost-effective and low-maintenance, with no wood floor joists to rot.

• Requires careful perimeter drainage to prevent water from undermining the slab.

• Plumbing and electrical lines are embedded in or under the slab, making future access difficult.

5. Stem Wall Foundation

A stem wall foundation combines a poured concrete footing with a raised perimeter wall. The “stem” lifts the floor joists above grade, creating a shallow crawl space or a level base for a slab.

• Common in regions with moderate frost depths, including Colorado.

• Provides a stable, code-compliant connection between the footing and the structure above.

• Allows for easier plumbing and mechanical access than a slab-on-grade.

• Requires proper backfill and drainage to avoid lateral pressure on the wall.

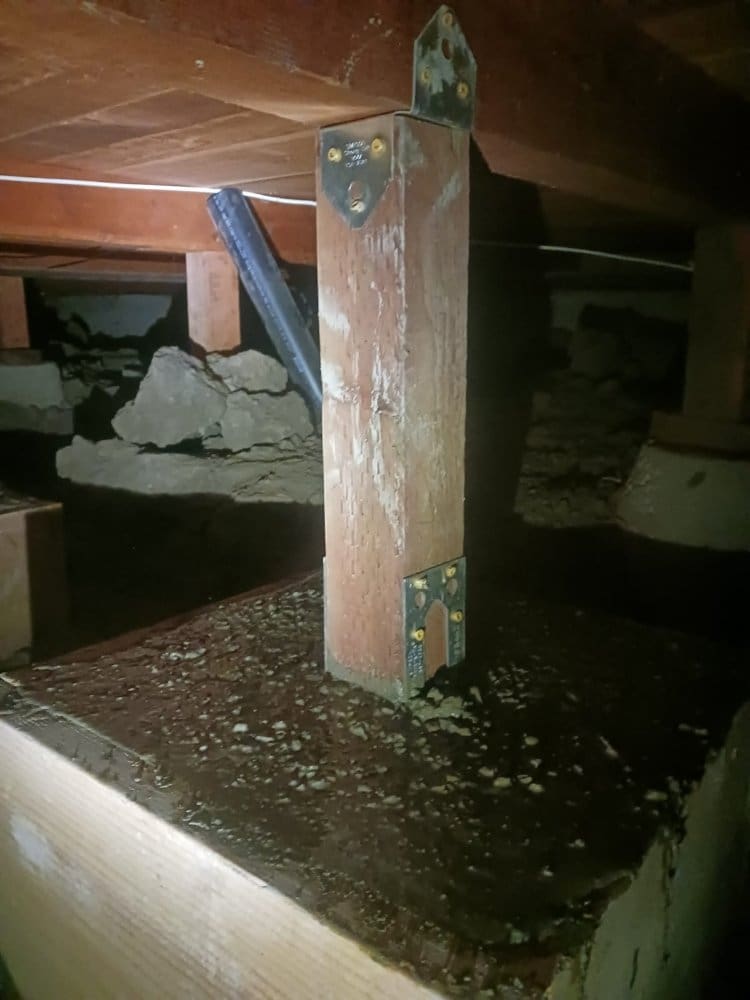

6. Crawl Space Foundation

A crawl space elevates the home roughly 18 inches to 4 feet off the ground. Short foundation walls on footings enclose the space, which remains accessible but not habitable.

• Provides easy access to plumbing, ductwork, and wiring.

• Performs well on sloped lots where a basement would be cost-prohibitive.

• In Colorado, proper moisture control is critical—unsealed crawl spaces can draw in radon gas.

• Must be ventilated or conditioned to prevent mold, wood rot, and pest intrusion.

7. Basement Foundation

A basement is a full-depth foundation extending at least 8 feet below grade, creating usable living or storage space. The walls themselves serve as the foundation system.

• Popular in cold climates where footings must extend below the frost line.

• Offers maximum square footage for the building footprint.

• T-shaped and poured concrete basements provide excellent lateral stability.

• Waterproofing is essential—hydrostatic pressure can cause leaks, and perimeter drain tile (French drain) is a standard requirement.

Table: Residential Foundation Styles

---

Deep Foundations: Reaching Stable Soil Layers

Deep foundations extend through weak surface soils to transfer loads to deeper, more competent strata. They are essential for heavy structures, poor soil conditions, or sites with high water tables.

1. Pile Foundation

Piles are long, slender columns driven, drilled, or screwed deep into the ground. They work through end-bearing (resting on hardpan or rock) or skin friction (gripping the soil along their shaft).

• Driven piles: Pre-cast concrete, steel H-piles, or timber sections pounded into the ground.

• Bored piles (drilled shafts): A hole is drilled and filled with reinforced concrete.

• Helical piles: Steel shafts with helical bearing plates, screwed into the soil like a giant screw. Ideal for underpinning and new construction on unstable soils.

• Used for high-rise buildings, bridges, and structures on weak or variable soils.

• In Denver, helical piers are a go-to solution for repairing settled foundations on bentonite clay.

2. Caisson (Drilled Shaft) Foundation

Caissons are large-diameter, cast-in-place concrete cylinders. They are excavated to great depths, often through water, until they reach bedrock or a predetermined bearing stratum.

• Provide immense load capacity for heavy structures like bridges and piers.

• Can be constructed as open caissons (excavated through the shaft) or pneumatic caissons (using compressed air to keep water out).

• Complex and expensive, requiring specialized heavy equipment and geotechnical expertise.

3. Pier Foundation (Masonry or Concrete)

Piers are vertical columns, typically constructed by excavating a hole and filling it with concrete or laying masonry units. They are a deep foundation option for medium loads.

• Often used in pier-and-beam residential foundations.

• The beam (grade beam) spans between the piers to support the structure above.

• Elevates the home off the ground, providing a crawl space and flood protection.

Table: Deep Foundation Comparison

---

What Type of Foundation Is Best for Denver’s Unique Conditions?

Denver’s Front Range presents a geological puzzle for foundations. The region’s notorious bentonite clay swells dramatically when wet and shrinks when dry, exerting enough force to crack foundations and heave slabs. This makes foundation selection a critical, code-driven decision.

• Slab-on-grade with stiffened ribs: Post-tensioned or reinforced slabs designed to “float” over expansive soil are common in new subdivisions. The ribs add rigidity to withstand soil movement.

• Over-excavation and structural fill: A common strategy involves excavating 3 to 4 feet of the native clay, then re-compacting a non-expansive structural fill. The foundation is built on this engineered pad.

• Helical pier underpinning: For existing homes experiencing settlement, helical piers are driven through the unstable clay and anchored into stable soil or bedrock. Bedrock Foundation Builders has performed thousands of helical pier installations across the Denver metro area, delivering code-compliant lifts and permanent stabilization backed by a lifetime warranty.

• Crawl space or basement with proper drainage: Elevating the floor above the clay with a crawl space or basement reduces direct contact. However, perimeter drain tile, sump pumps, and exterior waterproofing are mandatory to manage hydrostatic pressure and soil moisture.

Denver Foundation Selection Matrix

Expert Insight: In 2026, the International Building Code (IBC) requires a site-specific geotechnical investigation for all new residential foundations in expansive soil zones. A licensed structural engineer must review the soil report and specify the foundation design. Skipping this step—or relying on a “standard” foundation plan—can lead to costly structural failures and void home warranties.

---

How to Choose the Right Foundation: 7 Decision Factors

Selecting the appropriate foundation is a multi-disciplinary decision. Evaluate these seven factors before breaking ground:

1. Soil Bearing Capacity: A geotechnical soil report is non-negotiable. The allowable bearing pressure (measured in pounds per square foot) dictates whether a shallow spread footing is possible or a deep foundation is required.

2. Soil Expansion Potential: Clay-rich soils with a Plasticity Index (PI) above 25 are considered highly expansive. Foundations on these soils must be engineered for uplift and lateral pressure.

3. Depth of Frost Line: In Denver, the frost depth is approximately 36 inches. Footings must bear below this depth to prevent frost heave.

4. Water Table Elevation: A high water table can complicate excavation, require dewatering during construction, and demand a robust waterproofing system for basements.

5. Structural Loads: The total weight of the building—dead loads (structure itself), live loads (occupants, furniture), and environmental loads (snow, wind, seismic)—determines footing sizes and foundation depth.

6. Climate and Weather: Regions with heavy rainfall need excellent drainage. Areas with deep frost need deep footings. Colorado’s semi-arid climate with periodic saturation cycles demands foundations that can tolerate moisture fluctuations.

7. Budget and Timeline: Slab-on-grade is generally the most economical upfront. Deep foundations significantly increase cost but are non-negotiable when soil conditions demand them. Factor in long-term maintenance; a properly engineered foundation is an investment that prevents far larger repair bills.

---

Common Foundation Issues and Their Solutions

Even the best foundations require attention over time. Recognizing early warning signs prevents structural emergencies.

• Settlement and Cracking: Diagonal cracks in brick, drywall fissures, and sticking doors indicate differential settlement. Solution: Foundation inspection to measure relative elevation. Helical pier installation to lift and stabilize settled sections.

• Moisture Intrusion and Efflorescence: White powdery residue on basement walls signals moisture wicking through the concrete. Solution: Install exterior waterproofing membrane and interior drain tile. Improve downspout extensions and exterior grading.

• Bowing or Tilting Walls: Horizontal cracks or inward movement of foundation walls. This is an urgent structural issue caused by expansive clay pressure or inadequate wall reinforcement. Solution: Wall anchor systems, carbon fiber reinforcement, or structural rebuild.

• Floor Heave: A slab that rises in the center typically indicates expansive soil swelling beneath the slab. Solution: Moisture management through deep perimeter drains. In severe cases, the slab must be removed, the soil stabilized, and the foundation re-poured.

Maintenance Checklist for Foundation Health

---

Frequently Asked Questions

What is the most common type of foundation used in residential construction?

The most common residential foundation is the concrete slab-on-grade, especially in warmer climates and new developments. In colder climates like Colorado, basements and crawl spaces are also widely used because the footings must extend below the frost line. For homes with expansive soils, a post-tensioned or reinforced structural slab is the standard.

How do soil conditions affect the choice of foundation type?

Soil is the single most important variable. Strong, granular soils (sand, gravel) have high bearing capacity and low expansion potential, making them ideal for shallow spread footings. Weak, compressible soils (soft clay, silt) have low bearing capacity and require deep foundations like piles or caissons. Expansive clays exert swelling pressure that demands specialized designs—such as void forms, over-excavation, or deep piers anchored below the active zone.

What are the warning signs that I have a foundation problem?

Common indicators include:

• Cracks in exterior brick or interior drywall, especially around doors and windows.

• Doors or windows that stick, rub, or fail to latch.

• Uneven or sloping floors.

• Gaps between the floor and baseboards, or between walls and the ceiling.

• Water in the basement after rain, or persistent dampness in the crawl space.
  If you observe any of these symptoms, schedule a professional foundation inspection immediately. Early detection dramatically reduces repair scope and cost.

How can I protect my foundation from water damage?

A multi-layered approach is essential:

1. Grade the soil around your foundation so that it slopes away at a minimum of 5 percent (6 inches of fall in the first 10 feet).

2. Keep gutters clean and extend downspouts at least 5 feet from the foundation. Use splash blocks or buried drain pipes.

3. Install a waterproofing membrane on the exterior of foundation walls, combined with a foundation drain (French drain) at the footing level.

4. In crawl spaces, install a sealed vapor barrier over the soil and condition the space to prevent condensation.

5. For basements, a sump pump with a battery backup provides the last line of defense against flooding during power outages.

Is a basement or a crawl space better for a home in Denver?

The answer depends on your site, budget, and goals. A basement provides additional living square footage and easier access to mechanical systems, but it requires significant excavation and a comprehensive waterproofing strategy. A crawl space is less expensive to build and elevates your living areas above the expansive clay, reducing direct soil contact. However, crawl spaces must be meticulously sealed against radon and moisture. A local geotechnical report and consultation with a structural engineer will determine the safest, most cost-effective option for your specific lot.

What is the strongest type of foundation for a residential building?

A reinforced poured concrete basement or a structural slab-on-grade with integrated steel rebar or post-tension cables provides the highest load-bearing capacity and resistance to soil movement. The true “strength” comes not just from the concrete but from the engineered steel reinforcement placed within it. In Denver’s expansive soil region, deep helical piers that anchor the foundation into stable bedrock below the zone of seasonal moisture change offer the ultimate stabilization solution.

How is a commercial foundation different from a residential foundation?

Commercial foundations support heavier loads, larger spans, and taller structures. They frequently employ deep foundation elements—drilled shafts, auger-cast piles, and mat foundations—and require more rigorous geotechnical investigation. Commercial projects also must comply with stricter building codes for seismic, wind, and fire resistance. Construction tolerances are tighter, and the design-build process involves a larger team of structural engineers, architects, and specialty contractors.

---
